RV Jump Starter Guide: Chassis vs House Battery, the Aux Start Switch, and Sizing by RV Class (2026)
Sep 14, 2026
Short answer: An RV has two electrical systems that people mix up at the worst moment. The chassis battery starts the engine; the house batteries run the lights, fridge, and water pump. When an RV will not start, it is the chassis battery, and the fix is a lithium jump starter, because the onboard generator cannot start the engine and there is rarely a second vehicle in a campground at dawn. Keep the jump starter in the cab, keep it charged, and know where the chassis battery lives before the trip.
Chassis battery vs. house battery

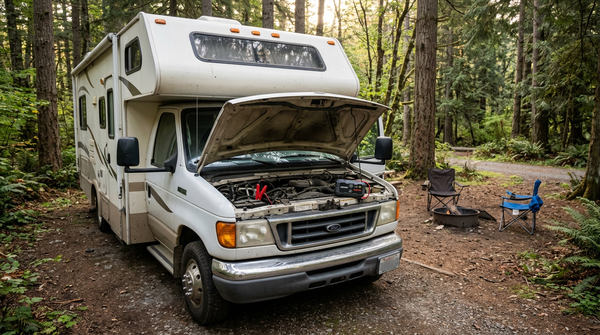

Every motorhome has a starting battery for the engine, the chassis battery, usually under the hood or a front step. Separately, one or more deep-cycle house batteries power the living space. They are isolated so a night of lights and furnace fan does not drain the engine's battery. That isolation is why the generator does not help: it charges the house side. When the engine will not crank, you need current at the chassis battery, and a jump starter is the tool.
The auxiliary start switch
Many Class A and Class C motorhomes have an Aux Start or Emergency Start button on the dash. It briefly parallels the house bank to the chassis battery for one crank. Try it first; it works when the chassis battery is low but the house bank is healthy. When both are low, which is common after a few days dry camping with a weak charge, the jump starter is what starts the engine.
Sizing for an RV engine
| RV | Engine | POD X pick |
|---|---|---|
| Class B van, Class C on a Ford or Chevy gas chassis | V8 or V10 gas | XTREME 1000A |
| Class C on a Sprinter or Transit diesel | Light-duty diesel | X1 Pro 2000A or XTREME warmed |
| Class A gas | Large V8 or V10 | X1 Pro 2000A |
| Class A diesel pusher | Large diesel | Consult the chassis manual; large diesels may exceed a portable unit's rating |
| Tow vehicle and trailer | Truck engine | XTREME or X1 Pro by engine size |
Cold mornings need more current than the summer rating suggests; see jump starters in cold weather.
The procedure
- Find the chassis battery. Under the hood, under the driver's step, or in a front compartment. Locate it at home, not at a dark campsite.
- Everything off: headlights, dash, house-side inverter if it shares a ground.
- Red clamp to the chassis battery positive, black to a clean engine ground.
- Green light, then crank up to three seconds. Wait thirty seconds between tries.
- Running: black off, then red. Drive or idle twenty minutes to recharge, and get the battery load-tested at the next stop.
The RV backup power question
A jump starter is not a house power source. It starts the engine and charges phones and a headlamp; it does not run the fridge. For the living side, the house bank, shore power, the generator, and solar do the work. For Starlink Mini at a campsite, the Star Power 600 gives a few hours of internet on a pop-up deploy; for a permanent roof mount, a 12V step-up converter from the house bank is the right install, which is the approach Conversions Tech engineers for RVs. Our Starlink off-grid guide covers both.
The RV kit beyond the jump starter
- LED flares: an RV on a shoulder is a big target; three reusable flares set at 10, 100, and 200 feet
- A 12V compressor for tires and the trailer
- A folding shovel and traction for a soft campsite or a snowed-in pad; see the recovery guide
- A headlamp and area light for a hookup or a repair after dark
- The Ultimate Emergency Survival Kit in a bay, since an RV is also a home in a storm
- A quick-connect tender cable on the chassis battery so a maintenance charger plugs in during storage
Prevent the dead chassis battery
- Store on a tender; chassis batteries die in storage more than on the road
- Check the chassis disconnect switch before storage; a stuck-on dash accessory drains it in weeks
- Replace at four to five years, before the trip, not during
Frequently asked questions
Can the RV generator start the engine?
No. The generator charges the house batteries. The engine needs current at the chassis battery, from the Aux Start switch or a jump starter.
Where is the chassis battery on a motorhome?
Usually under the hood on a Class C or B, under the driver's step or in a front bay on a Class A. Find it at home.
Will a jump starter run my RV fridge?
No. It starts the engine and charges small devices. The house bank, shore power, generator, or solar run the living space.
Can a portable jump starter start a diesel pusher?
Light-duty diesels yes; large Class A diesels may exceed a portable unit's rating. Check the chassis manual and consider a 2000A unit as the minimum.
